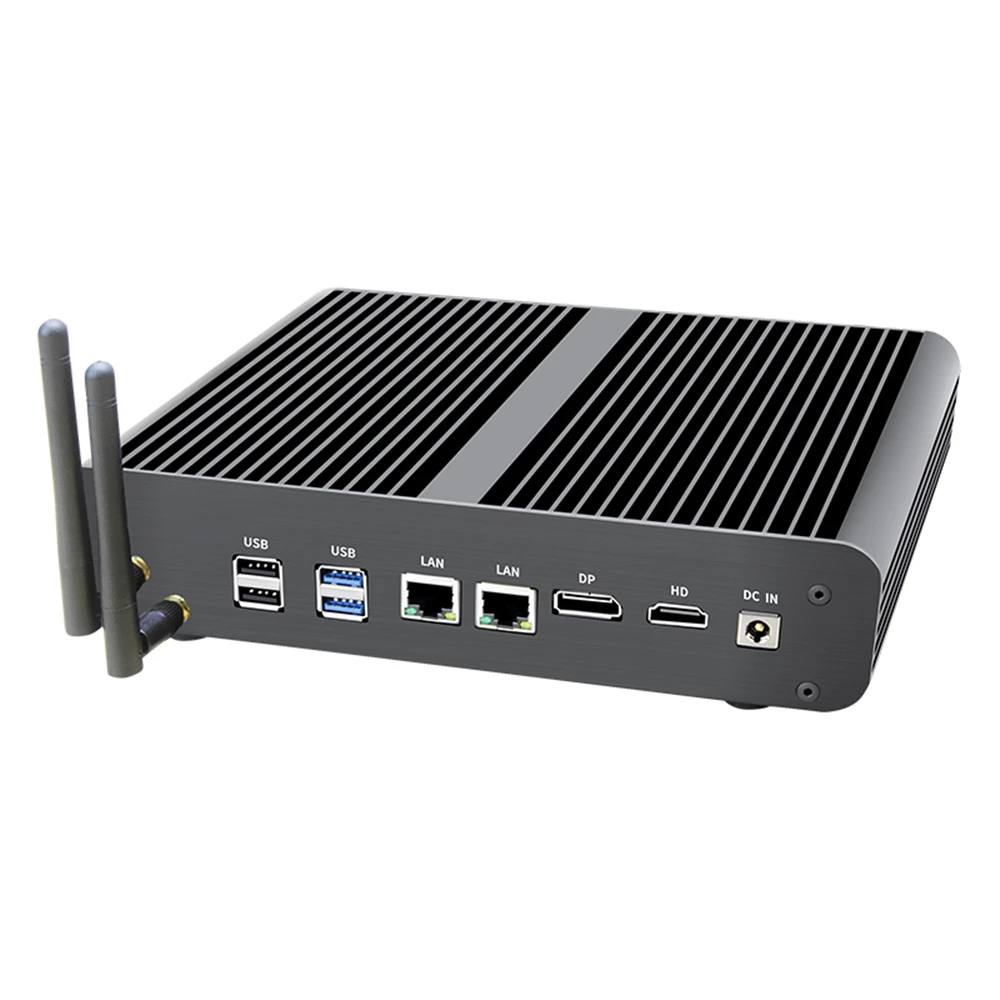

Eglobal Fanless Mini Computer Intel i7 8565U/7560U i5 8265U/7260U 2*DDR4 Msata+M.2 PCIE Mini PC Windows 10 HTPC Nuc VGA DP HDMI

£242.35£730.69 (-37%)

29740 in stock

16GB Ram 128GB SSD16GB RAM-256GB SSD16GB RAM-512GB SSD32GB Ram 1TB SSD32GB Ram 512GB SSD8GB Ram 128GB SSD8GB RAM-256GB SSDNo Ram No Storage
i5 7260U 7267U DDR4i5 8265U 8250U DDR4i7 7560U 7567U DDR4i7 8565U 8550U DDR4
Clear
SKU: 32764755051 Categories: , ,

Big Sale for bundle with ram and storage:

1. Upgrade DDR4 ram to 2400MHz free!

2. Upgrade 2.4G/5G dual band WiFi free!

3. Upgrade Msata SSD to fast M.2 NVMe/PCIe 3.0×4 SSD free!

Barebone Mini PC (“No Ram No Storage” bundle) package DO NOT include WiFi(antennas), if you need, please pay extra US $7 at this link. Other bundles include WiFi(antennas).

DO NOT buy “no ram no storage” bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.

Key Features

CPU

1. 8th Gen 14nm CPU Intel Core i7 8565U 4 cores 8 threads 1.8GHz up to 4.6GHz 8MB cache TDP 15W Intel UHD Graphics 620. (probably send i7 8550U 8650U by random)

2. 8th Gen 14nm CPU Intel Core i5 8265U 4 cores 8 threads 1.6GHz up to 3.9GHz 6MB cache TDP 15W Intel UHD Graphics 620. (Probably send i5 8250U 8350U by random)

3. 7th Gen 14nm CPU Intel Core i7 7560U 2 cores 4 threads 2.4GHz up to 3.8GHz 4MB cache TDP 15W Intel Iris Plus Graphics 640. (Probably send i7 7567U by random)

4. 7th Gen 14nm CPU Intel Core i5 7260U 2 cores 4 threads 2.2GHz up to 3.4GHz 4MB cache TDP 15W Intel Iris Plus Graphics 640. (Probably send i5 7267U by random)

RAM

Support 2*DDR4-2133/2400 laptop ram Maximum 32GB RAM

Storage

Support 1*mSATA SSD+1*M.2(NVMe) SSD+1*2.5'' SATA HDD/SSD installation together

Graphics

Intel graphics UHD 620,support ultra HD 4K resolution

I/O

Mic; Speaker; 4* USB 3.0 port; 4* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1* VGA(DP); 1* HDMI; 1* DC In;

Operating System

Windows10, Linux Compatible, OpenELEC

Language

Multi Language

Feature

Fanless system design, without noise

USB port

4*USB 3.0+4*USB 2.0

Wireless

802.11.b/g/n, 300M 2.4G/5G dual band WiFi with 2 Antennas( exclude “No Ram No Storage” bundle

)

HD Output

1* HDMI port, 1* VGA(DP) port, support HDMI+VGA(DP) dual display

LAN port

1* Gigabit Realtek RJ45 Lan speed up to 1Gbps

Power and Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V-19V~3A/5A

Operating Temperature

0/70 Centigrade (32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Support Virtualization technology

Hyper-threading

Support Hyper-Threading

Consumption

15W~28W

Physical Properties

Material

Brushed Aluminum Alloy

Weight

NW:2.0Kg GW:2.5Kg

Package Content

1* Mini PC; 1* power adapter; 2* Antennas etc

Warranty

30 days free defective replacement and 3 years free repair

1)-Advanced newest intel processor, assure powerful performance for gaming, office, drawing;

2)- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;

3)- Triple-Storage: support 1*Msata SSD+1*M.2 NVMe(22×80) SSD+1*2.5'' SATA HD;

4)- Noiseless: Fanless system, all aluminum passive heatsink, low consumption, 0.00dB noise;

5)- Slim volume: Can stand on desk by free bracket we supply, mount back of monitor by VESA bracket;

Buy with confidence! 3 Years long warranty for fanless system!

i5 8265U 8250U model: 4*USB3.0, 4*USB2.0, 1*HDMI, 1*VGA, 1*Lan

i7 8565U 8550U model: 4*USB3.0, 4*USB2.0, 1*HDMI, 1*DP, 1*Lan
i5 7260U 7267U model: 4*USB3.0, 4*USB2.0, 1*HDMI, 1*DP, 1*Optical, 2*Lan
i7 7560U 7567U model: 4*USB3.0, 4*USB2.0, 1*HDMI, 1*DP, 1*Optical, 2*Lan

Welcome to click the picture of VESA Bracket to order together if you need:

Free Operating System: Default installed our trial activated OEM windows 10/8/7 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu, Openelec etc if you need. Seller is not responsible for trial OEM system.

Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc , What brand we use depends on our test and our stock. What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.

1. USB Infrared remote (can turn power off but not on) add extra cost US$14.

2. 300M WiFi uprade to 5GHz AC WiFi&bluetooth, only add extra cost US$5.

3. Bluetooth4.0 USB Dongle add extra cost US$5.

4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.

5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.

6. Genuine windows license sticker add extra cost 35$.

7. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$.2TB 2.5'' HDD add extra 100$.

Upgrading link: //www.aliexpress.com/item/765856572.html

(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for…)

0/5 (0 Reviews)

Additional information

Brand Name

EGLOBAL

Processor Model

Core i7 8565U/7560U i5 8265U/7260U

Memory Capacity

≤ 128MB

Hard Drive Capacity

≤ 40GB

Model Number

E/V7

Use

Multimedia

Processor Main Frequency

Depends on Processor

Processor Brand

Intel

Graphics Card Type

Integrated Card

Type

Mini PC

Operating System

Windows 10, linux ,ubuntu supported

Feature

Fanless System, 0.00dB

Wireless

300M 2.4G/5G WiFi dual antennas, Optional bluetooth

Graphics

Depends on CPU

Case Material

Aluminum Alloy Case

Colour

i5 Silver/i7 black

Configuration

Optional as bundle

Storage Capacity

1*Msata+1*M.2+1*2.5''SATA

Memory

2*DDR4 Non-ECC laptop RAM slot

Ethernet port

RTL8168E PCIE Gigabit ethernet NIC
